TCD-1
BTS-TCD1

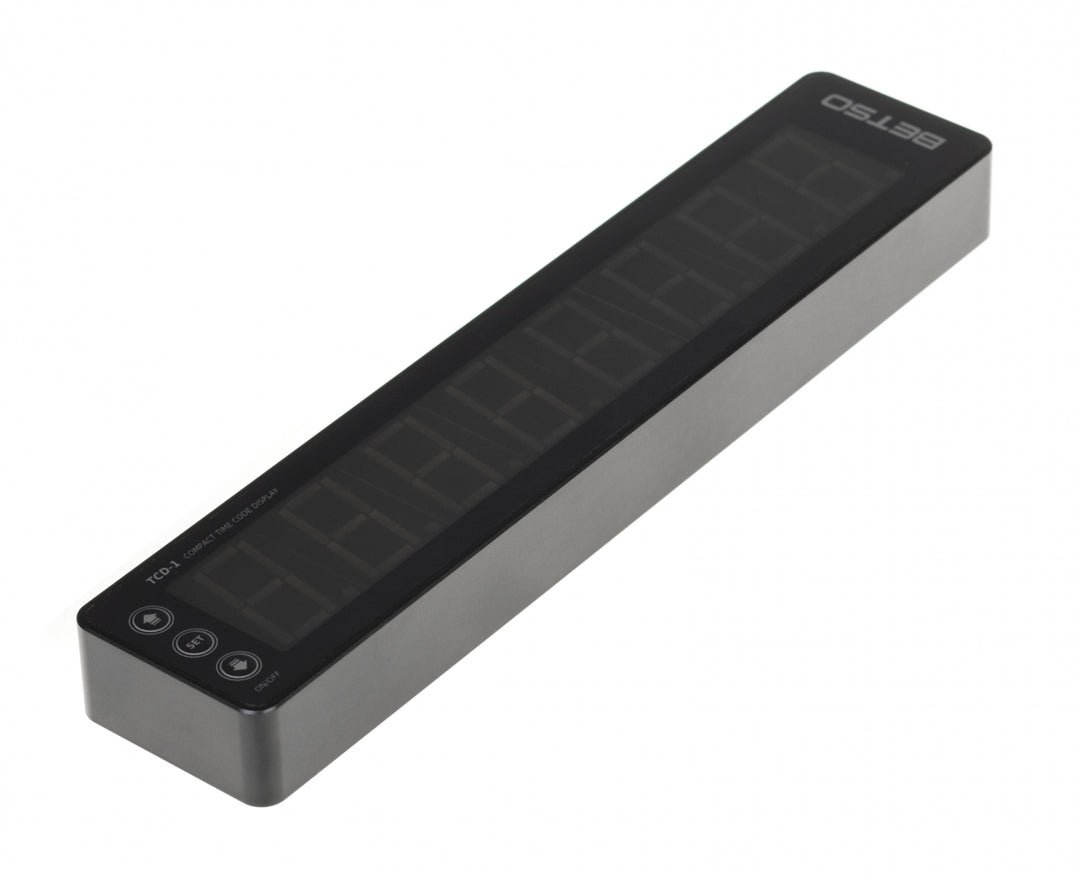

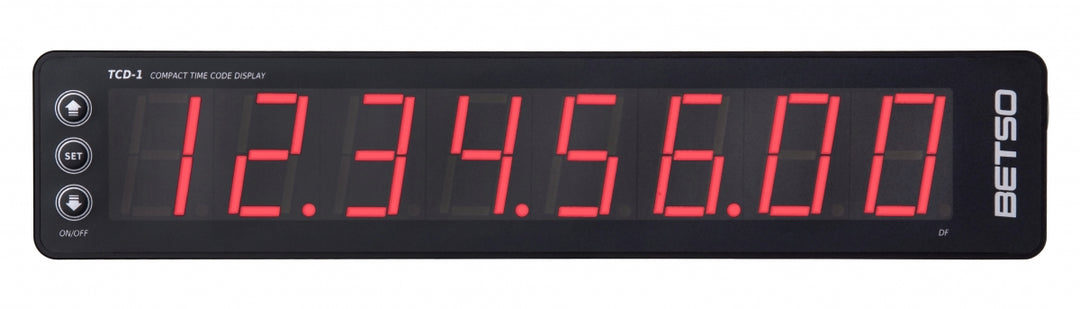

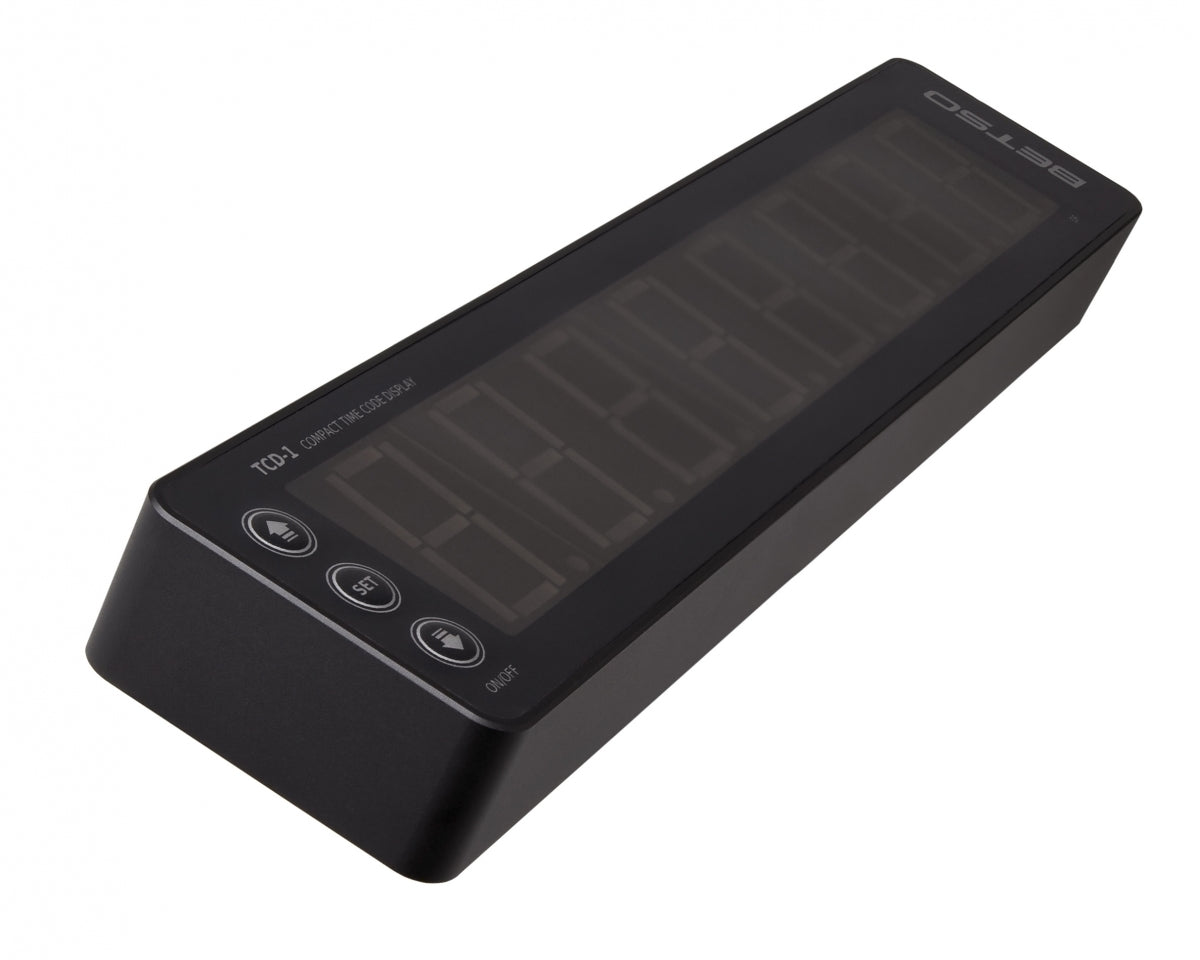

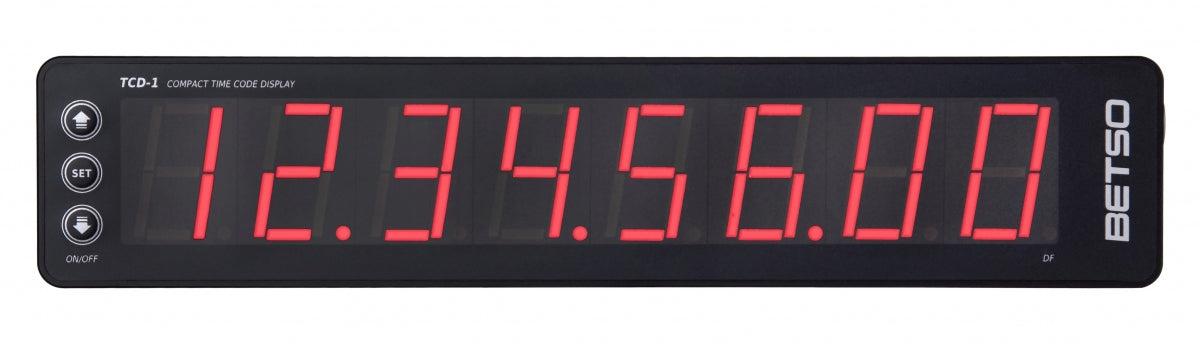

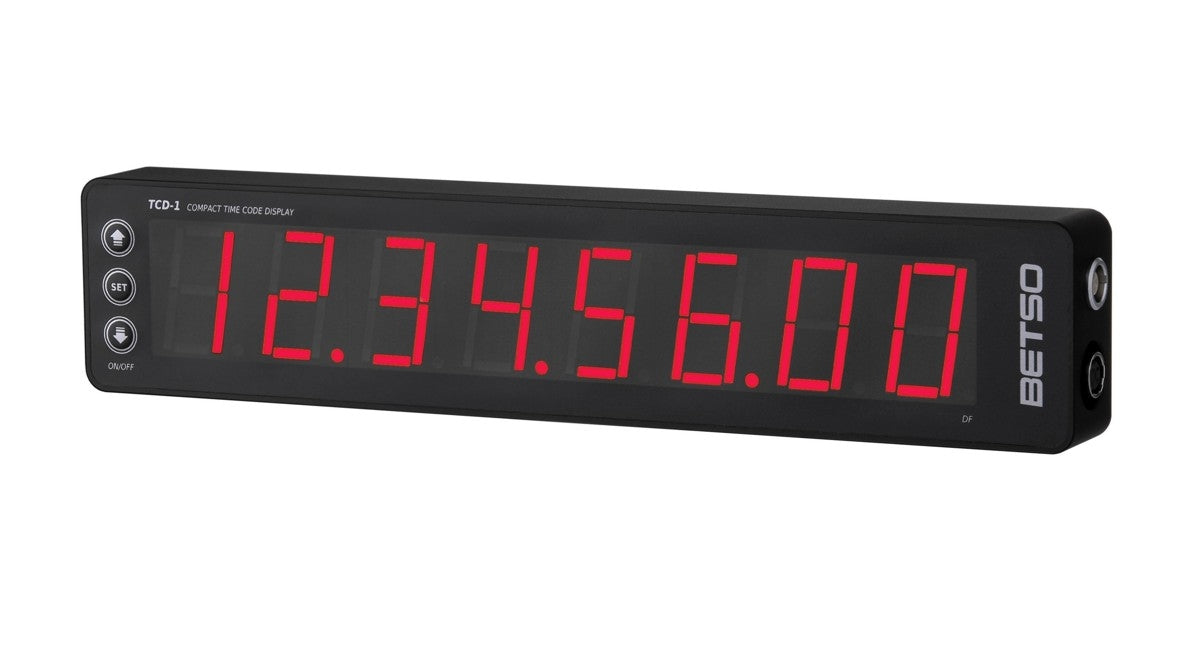

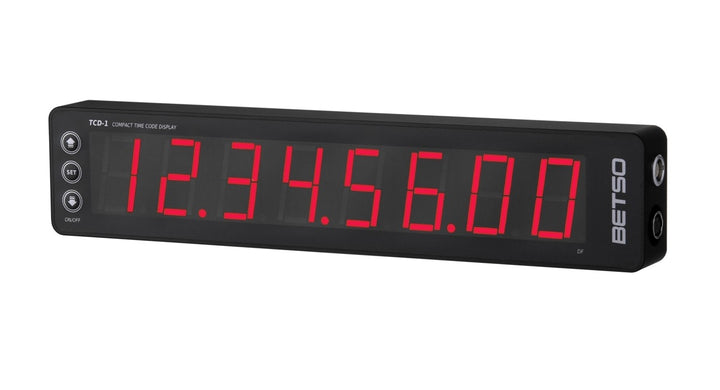

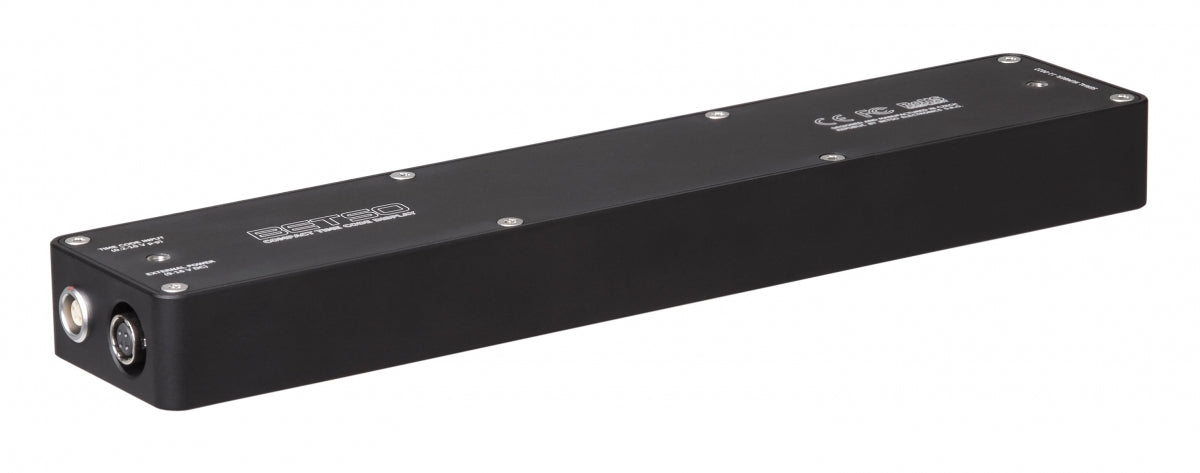

The Betso TCD-1 is a very compact time code display with a large, 1" high time code screen, capable of displaying any format of incoming time code. Special effort during the development phase was applied to lightweight, robust and precise mechanical construction, which will secure your confidence as the right time code read out solution.
The BETSO TCD-1 automatically detects input time code format and starts to display it immediately after connection. It has zero frame offset, which ensures exact time code read outs anytime during the day.
Additionally, it has an easy-to-access feature of time code format readout simply by holding UP button for one second. Drop frame format can be recognized during normal operation by the state of the last decimal point - when the shining drop frame format is detected on input.
Specifications
| Display | 1“ high red LED with adjustable brightness |
| Dimensions (h x w x d) | 44.5 x 215 x 21 mm |
| Weight | approx. 283g (including batteries) |
| Mechanical construction | CNC milled, anodized aluminium alloy |
| Powering |
Internal Li-Ion accumulator External powering 9 - 16 V DC |
| Current consumption |
1 - 550 mA |
| Battery life |
Up to 60 hours |
| SMPTE TC formats |
23,976 fps - 30 fps including DF and NDF (also 0.5 and 2 multiples: 11.98 fps - 60 fps supported) |
| Input TC sensitivity |
0.2 - 10 V (p-p) |
| Input TC offset |
0 frames |
