BETSO RF OCTOPUS
BTS-OCTOPUS
- Low stock - 1 item left

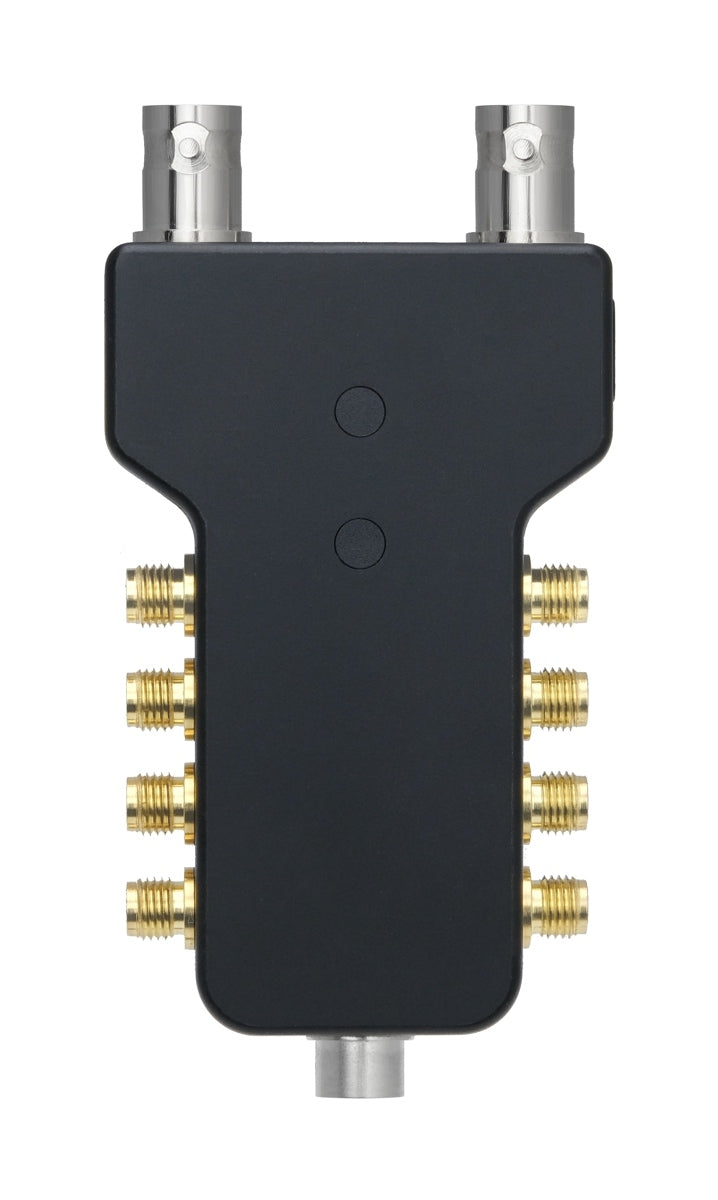

The Betso RF OCTOPUS RF Splitter, Combiner and Diagnostic Tool is the smallest and world's most versatile RF tool ever made for your sound cart or bag's wireless setup. This ingenious device supports multiple RF configurations.
Betso Octopus Modes:
- RF splitter 2:8 (diversity: 1 input → 4 outputs),
- RF splitter 1:8 (1 input → 8 outputs), and
- RF combiner-splitter 2:8 (combining two BNC RF inputs and splitting the RF signal into 8 outputs).
With user-selectable low-pass filters (700 MHz, 960 MHz, or 1260 MHz) directly accessible via the intuitive menu, the BETSO RF OCTOPUS is perfectly suited for use on projects the world over.
OLED Display: Effortless Operation Anywhere
The Betso Octopus features a sunlight-readable OLED display, paired with two bright white LEDs, which ensures effortless operation in any environment. Additionally, each channel features individually switchable power for active antennas, complete with overload protection and failure signalization.

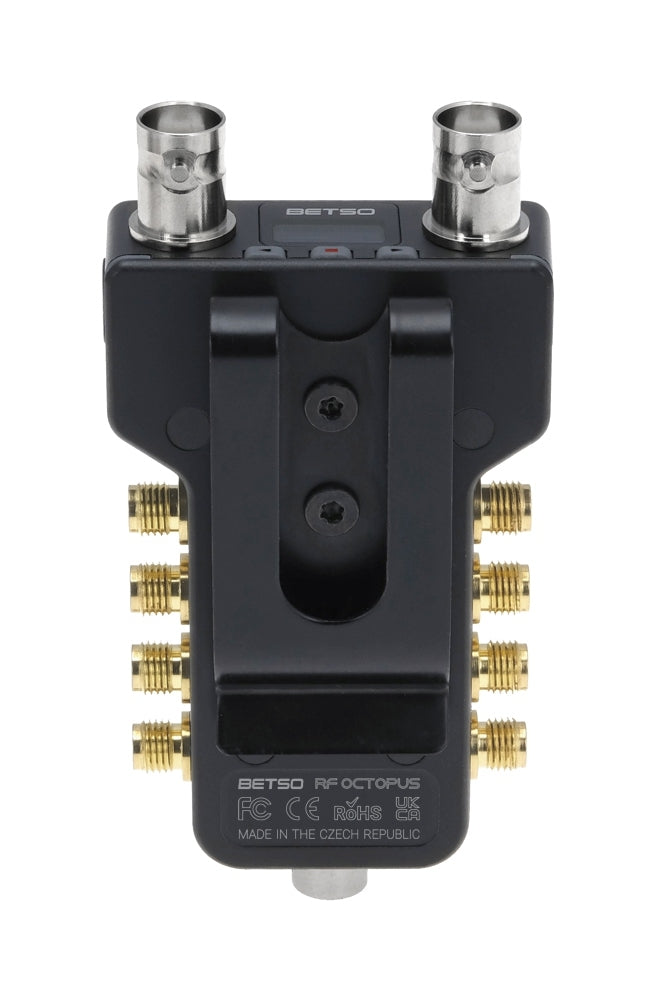

The OCTOPUS also includes a removable belt clip that can be mounted on either the top or bottom of the chassis for clipping to either side of your sound bag. Firmware updates and new features are easily accessible through the USB-C connector, which is securely sealed against dust and water.
Built-in Cable Testing for Reliable RF Performance

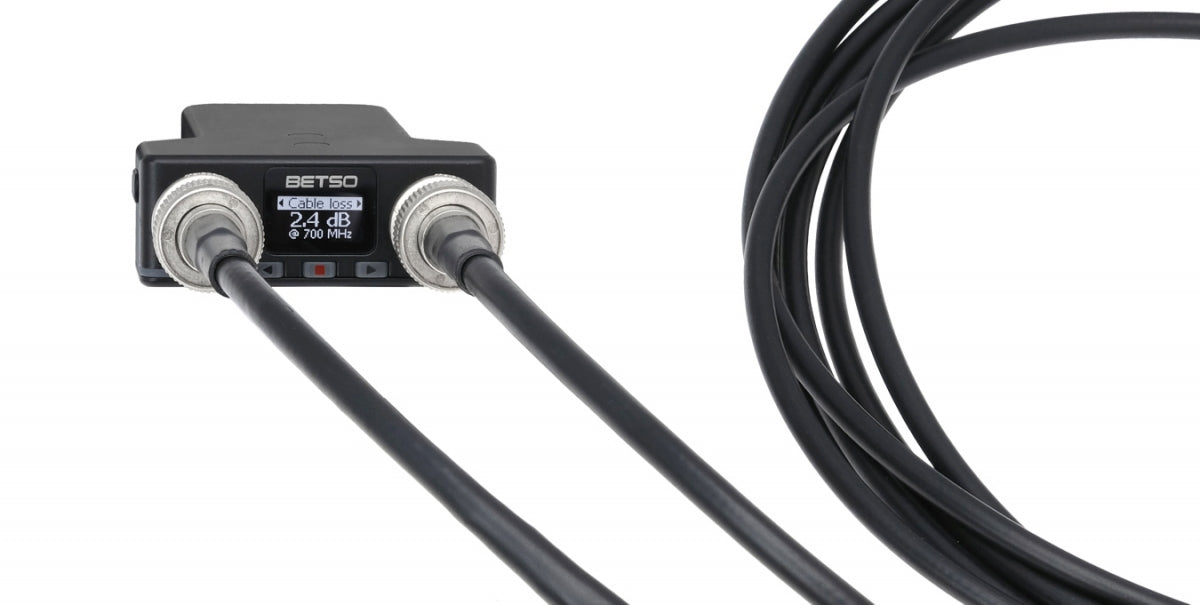

With its integrated cable attenuation measurement tool, the Betso OCTOPUS simplifies cable diagnostics. Connect your RF cable between two BNC connectors, select your frequency (500–900 MHz), and instantly measure the cable’s attenuation and condition. This ensures your cables perform at their best and minimizes system interruptions.
In addition, the RF OCTOPUS can measure the output RF power of your wireless transmitter, providing a quick and reliable check to ensure your RF power output is within the expected range. Another powerful feature for a comprehensive wireless system checkup!
Betso OCTOPUS Main Features
Unmatched configurability: The smallest and most versatile RF distributor and diagnostic tool ever made. The following operation modes can be selected directly from the menu:
① Splitter 2:8 (Diversity: 1 input → 4 outputs)
② Splitter 1:8 (1 input → 8 outputs)
③ Combiner-Splitter 1:8 (SUM of two inputs → 8 outputs)
Wide operating range: 470–1260 MHz with user-switchable low-pass filters 700/960/1260 MHz which limiting range to:
① 470 - 700 MHz
② 470 - 960 MHz
③ 470 - 1260 MHz
Top-tier performance: OIP3 > 40 dBm, RF amp noise figure < 0.8 dB, isolation between outputs > 21 dB (typical)
User-selectable gain: Adjust overall gain from -10 to +12 dB in precise 1-dB steps
Sunlight-readable OLED display: Ensuring easy operation and settings adjustments
Individual antenna power control: Enables simultaneous use of active and passive antennas, each with dedicated overload protection and failure indication
Automatic power-on function: Automatically powers on the device when connected to a power source (This feature can be disabled in the menu, requiring the user to power on the unit manually.)
Exceptional precision engineering: Durable CNC-milled aluminum alloy chassis.
Convenient power options: Standard 4-pin HRS connector (6–18V DC)
Innovative cable testing: Measure cable attenuation (0–40 dB, suitable for checking cables up to 200 m) on user-selected frequencies (500–900 MHz)
Integrated transmitter tester: Measure output power of your transmitters (up to 250 mW)
Future-proof updates: USB-C connector for firmware upgrades and additional features
Removable belt clip: Allows easy attachment to your sound bag or cart

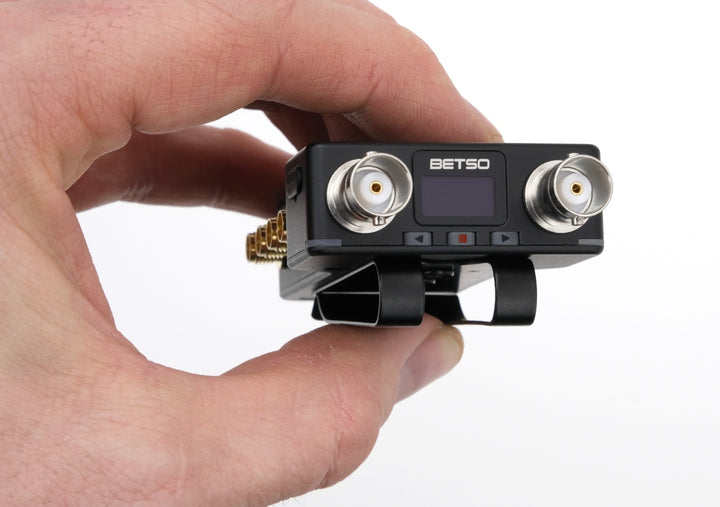

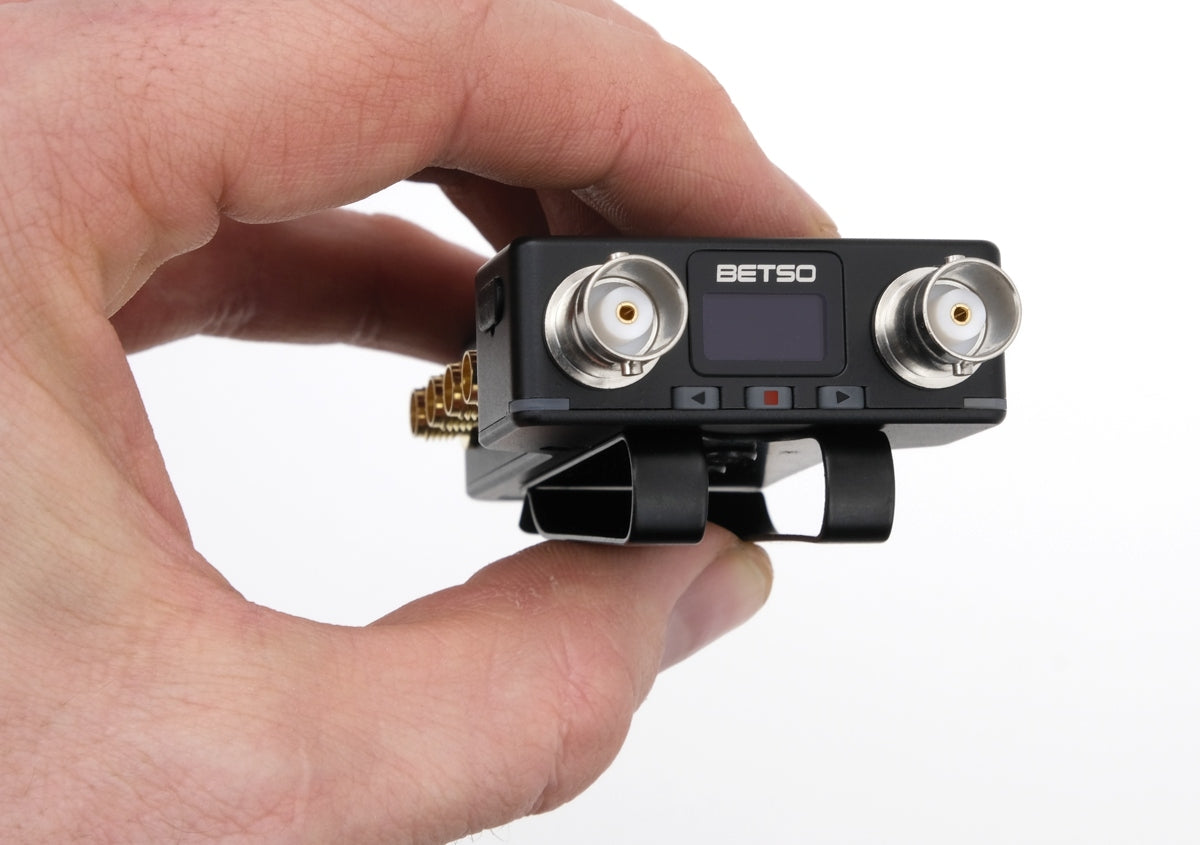

Compact and lightweight design: Measures 75 x 48 x 17.8 mm (without belt clip) and weighs only 110 g (with clip)
OCTOPUS Technical Specifications
| Frequency range | 470-1260 MHz (with in menu user-selectable low pass filters 700 MHz, 960 MHz or 1260 MHz) |
| In-built low pass selectable filters |
|
| Operation modes |
|
| Overall gain | -10 to +12 dB, user-adjustable |
| Input and output impedance | 50 Ohm |
| OIP3 | > +40 dBm |
| Output port-port isolation | > 21 dB (typ.) |
| Noise figure of LNA | < 0.8 dB |
| Input connectors | High quality BNC sockets |
| Output connectors sockets | High quality SMA sockets |
| Input powering connector | HRS compatible 4-pin |
| Operating voltage | 6-18V DC |
| Current consumption | < 100mA @12 V DC |
| Active antenna powering | Individually switchable, overload protected and monitored |
| Mechanic construction | CNC milled, anodized aluminium alloy |
| Dimensions (of the case) | 75 x 48 x 17.8 mm (2.95" x 1.89" x 0.7") |
| Weight | Approx. 110 g |
| Manufactured in the | Czech Republic |
Cable loss attenuation measurement
| Measured attenuation | From 0 dB to -40 dB |
| Frequency of measurement | 500 - 900 MHz (user-selectable in 100 MHz steps) |
| Maximum coax cable length | Up to 200 m * |
* Depends on the type of cable and its attenuation.
Wireless transmitter RF output power meter
| Maximum RF input | 250 mW |
| Frequency of measurement | 470 - 1260 MHz |
