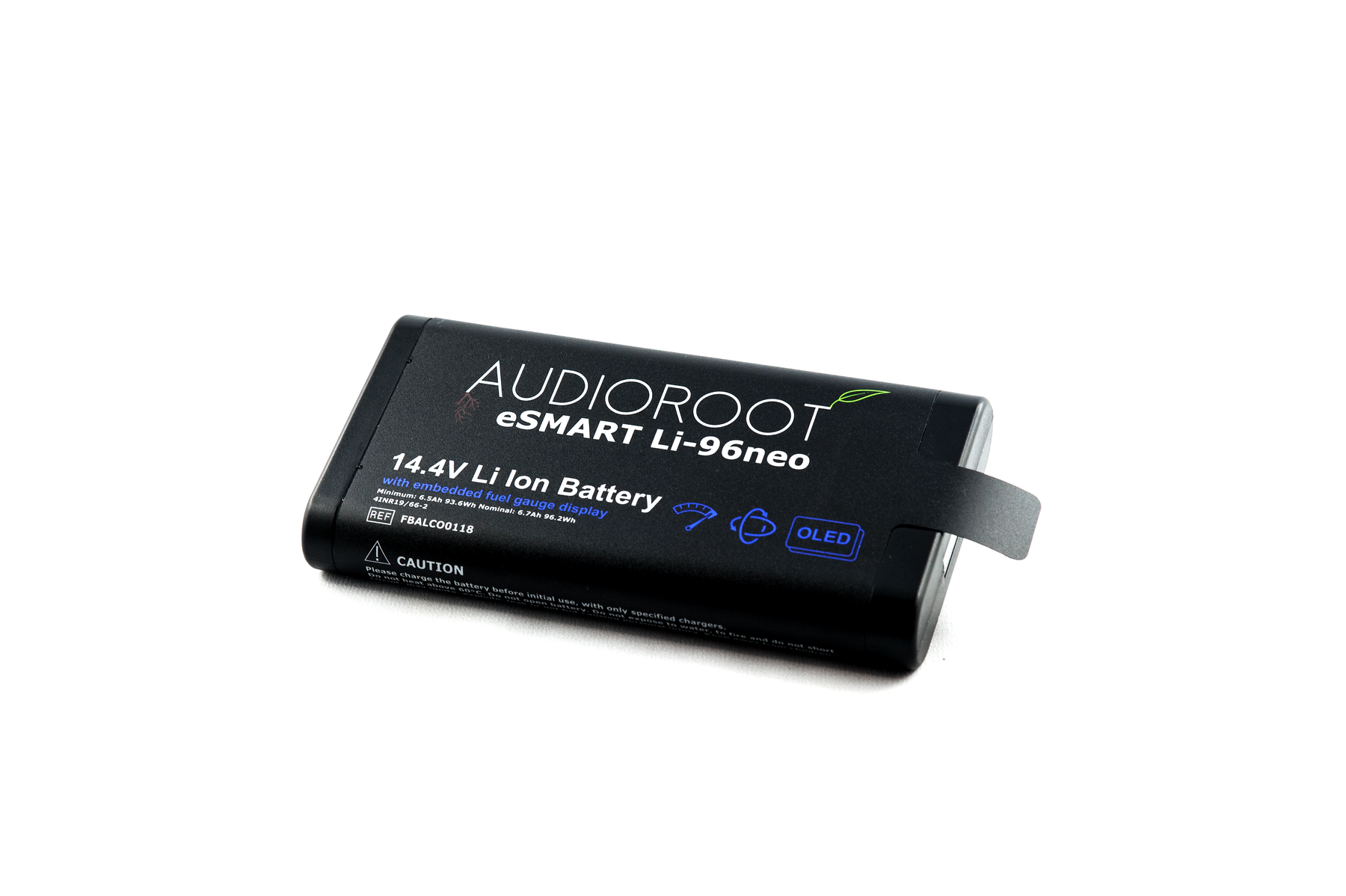

AUDIOROOT eSMART Li-96neo li-ion battery

The Audioroot eSMART Li-96neo is a 96Wh 14.4V smart lithium-ion battery engineered for professional location sound and mobile production setups. Designed with next-generation functionality, this advanced power solution features an embedded OLED display, giving you instant, accurate insights into your battery's status—no SMBus device required.

Key Features:

• Integrated OLED Display: Instantly view real-time charge information including voltage, current draw, remaining runtime, temperature, and cycle count—directly from the battery. Perfect for use with gear that lacks SMBus communication.

• Automatic Display Behavior: When powering devices, the OLED display activates automatically. When disconnected, simply shake the battery to activate the screen and check stored data.

• Advanced Fuel Gauge System: Powered by Impedance Track™ technology, the Li-96neo delivers high-precision monitoring of battery state, ensuring efficient power usage and safe operation.

• Smart & Compatible: When connected to SMBus-compatible devices (e.g. Audioroot’s eSMART BG-DH MKII or K-ART), the OLED display remains off to preserve power and avoid communication interference.

Technical Specifications:

• Voltage: 14.4V nominal (Range: 10V–16.8V)

• Capacity: Typical 6700mAh (Minimum 6200mAh) / 96Wh

• Max Discharge: 11.75A continuous

• Max Charge Current: 5.75A

• Charging Method: CC/CV at 3.25A

• Weight: 450g

• Dimensions: 150.4 × 77.2 × 22.6 mm

• Operation Temp: Charge: 10–45°C / Discharge: -20–60°C

• Cycle Life: >70% capacity after 500 cycles (under standard use)

• Certifications: UN 38.3, IEC 62133, EMC, FCC, RoHS, REACH

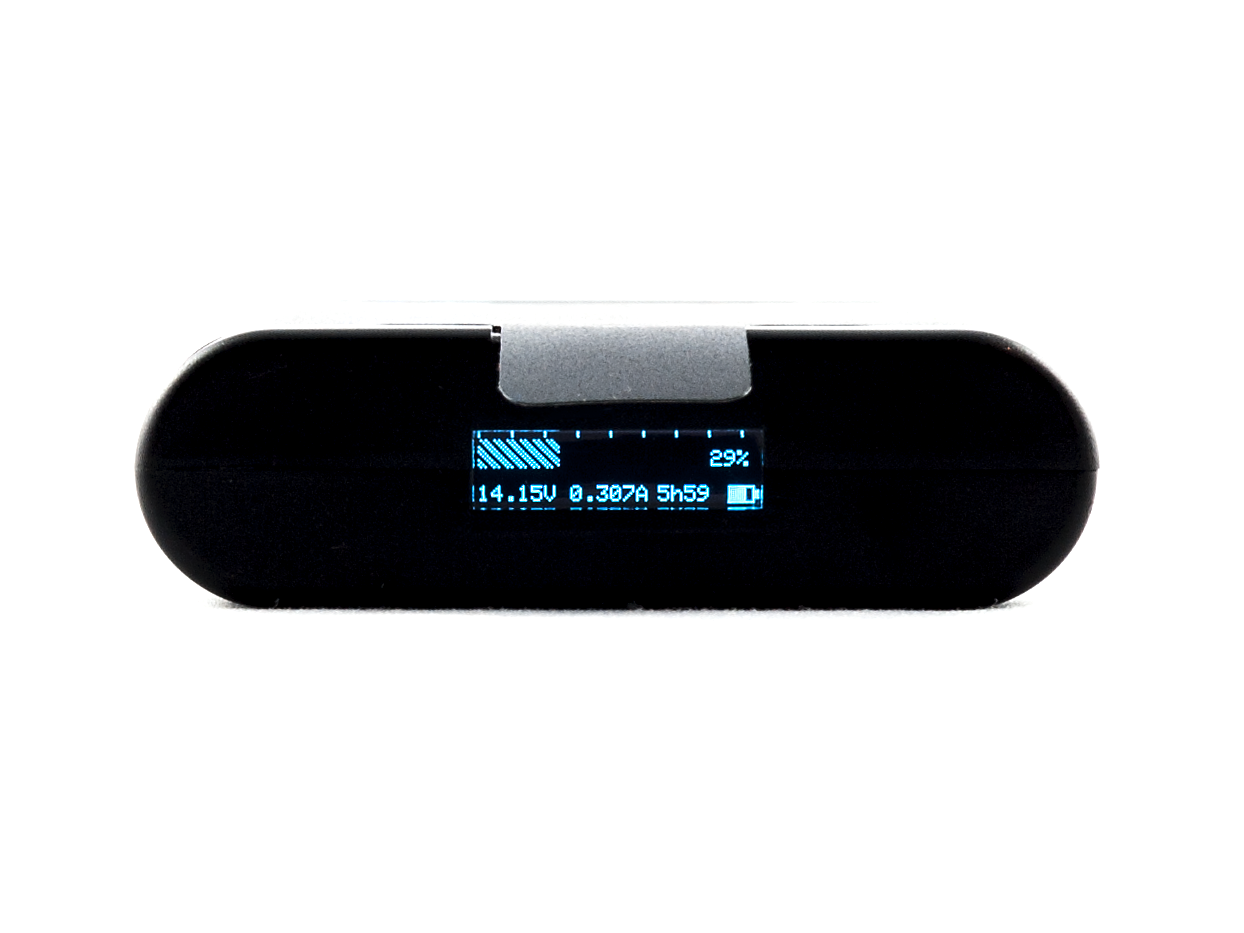

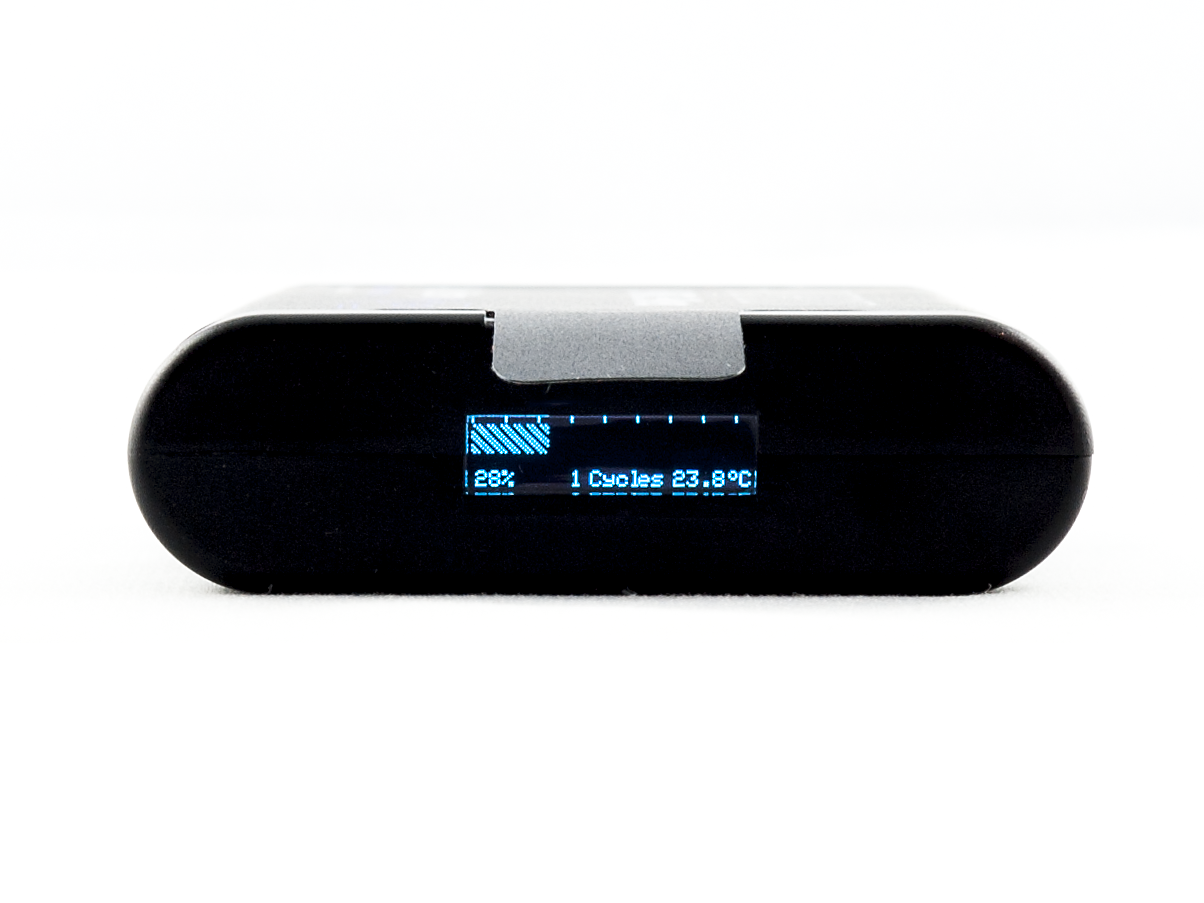

OLED Display Shows:

• Remaining battery capacity (%)

• Pack voltage (V)

• Current draw (A)

• Estimated runtime (HH:MM)

• Cycle count

• Battery temperature (°C)

• Charging/discharging status

Why Choose the eSMART Li-96neo?

Whether you're on a narrative shoot, documentary fieldwork, or ENG assignment, knowing your battery status is non-negotiable. The eSMART Li-96neo gives you:

• Visual control at a glance—no need for external monitors or SMBus-enabled gear.

• High current support for modern sound bags and demanding workflows.

• Long-lasting reliability with intelligent charging and high-quality cell design.

• Maximum flexibility: use standalone, with non-smart gear, or within full Audioroot ecosystems.

For sound professionals who demand clarity, control, and confidence, the eSMART Li-96neo delivers smart power—with nothing left in the dark.
