SOUND DEVICES Astral Outpost

Sound Devices Astral Outpost — Remote NexLink Antenna Extender for the Astral Wireless Ecosystem

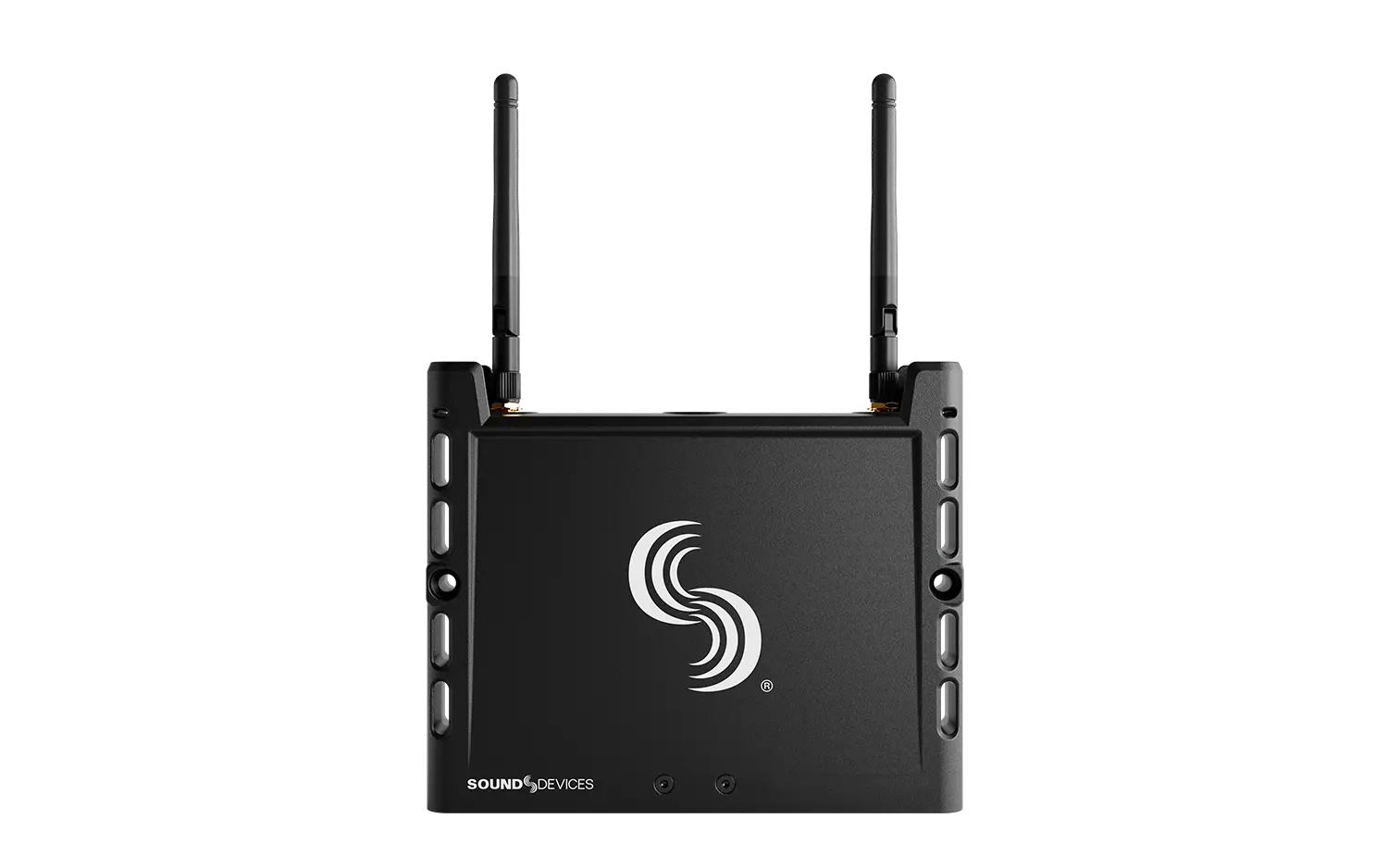

The Astral Outpost is a remote NexLink antenna module that lets you mount NexLink antennas far from the main receiver, extending control range and stability across stadiums, theatres, large stages, and complex multi-zone productions. Connect by Ethernet Cat-6 or optical fibre via SFP, power over PoE or USB-C, and deploy multiple Outposts on a single system to build a distributed antenna network.

The Outpost does not connect directly to transmitters — it relays the 2.4 GHz NexLink control link, which means transmitter performance (gain, frequency, record start/stop, sleep/wake) stays rock-solid even when talent is hundreds of metres from the receiver.

Key Features

• Remote NexLink antenna deployment over standard Ethernet Cat-6 or optical fibre (SFP module)
• PoE or USB-C powering (up to 15 W) — single-cable installation in fixed or temporary rigs
• Multiple Outposts per system for distributed antenna coverage across large venues
• Plug-and-play configuration: no RF setup required, works with standard structured cabling
• Real-time status monitoring from the Astral receiver interface (connection, power, comms)
• Custom unit naming ("Stage 1", "Stage 2", etc.) for clear identification in complex installs
• Weather-resistant metal chassis for outdoor and touring use

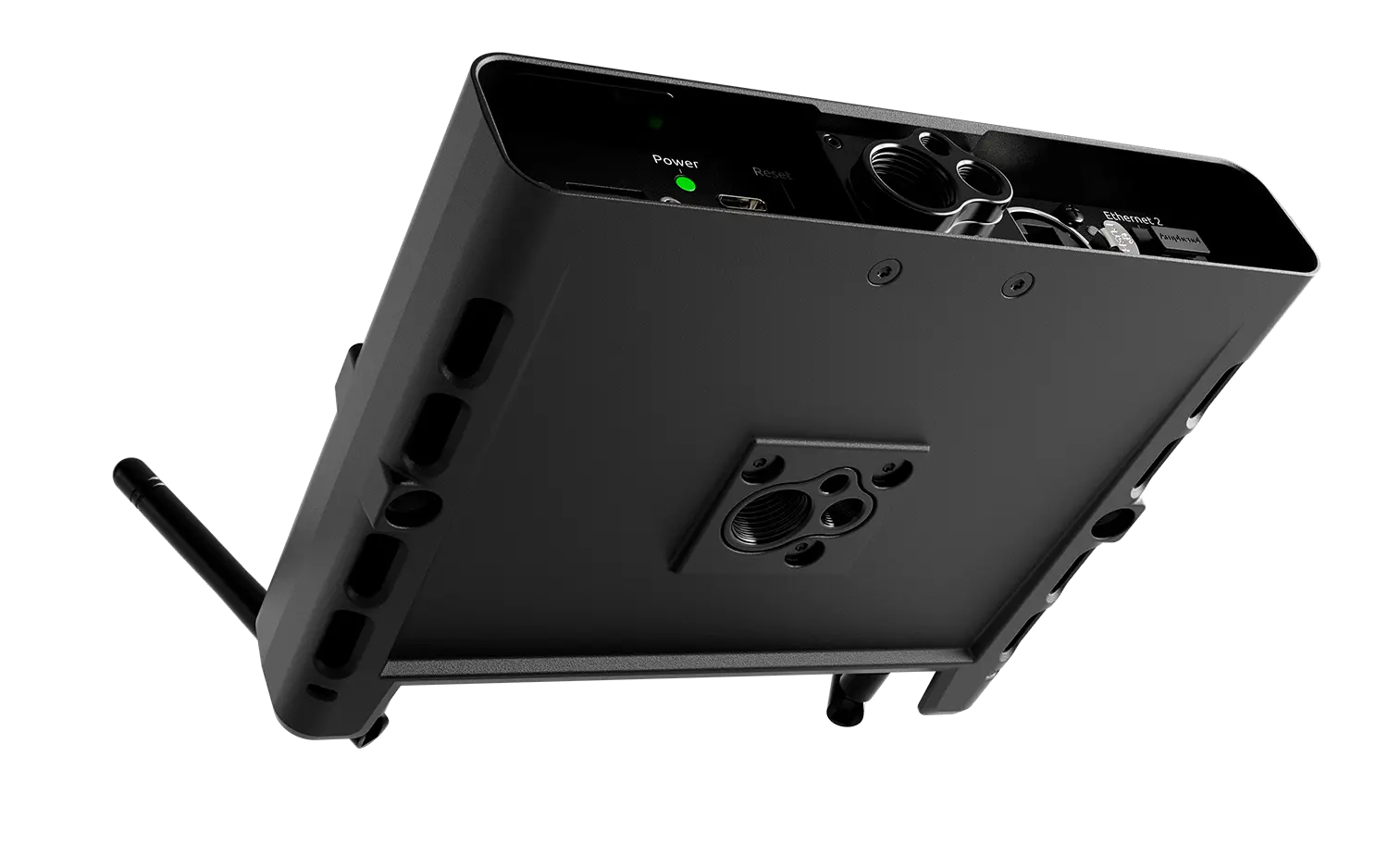

• Versatile mounting: integrated blocks with 1/4", 3/8", and 5/8" threads
• Firmware updates via Ethernet or USB-A — kept current with the Astral ecosystem

Compatibility

• Receivers: Astral ARX8 (formerly A20-Nexus Go), ARX16 (formerly A20-Nexus), ARX32 (formerly A20-SuperNexus)
• Transmitters served: A20-TX, A20-Mini (via NexLink relay — no direct TX connection)
• Required firmware: Astral v8.20 or later (adds multi-Outpost support and timecode distribution over NexLink)

Specifications

• Function: Remote NexLink antenna extender
• Antenna link: 2.4 GHz NexLink (relayed)

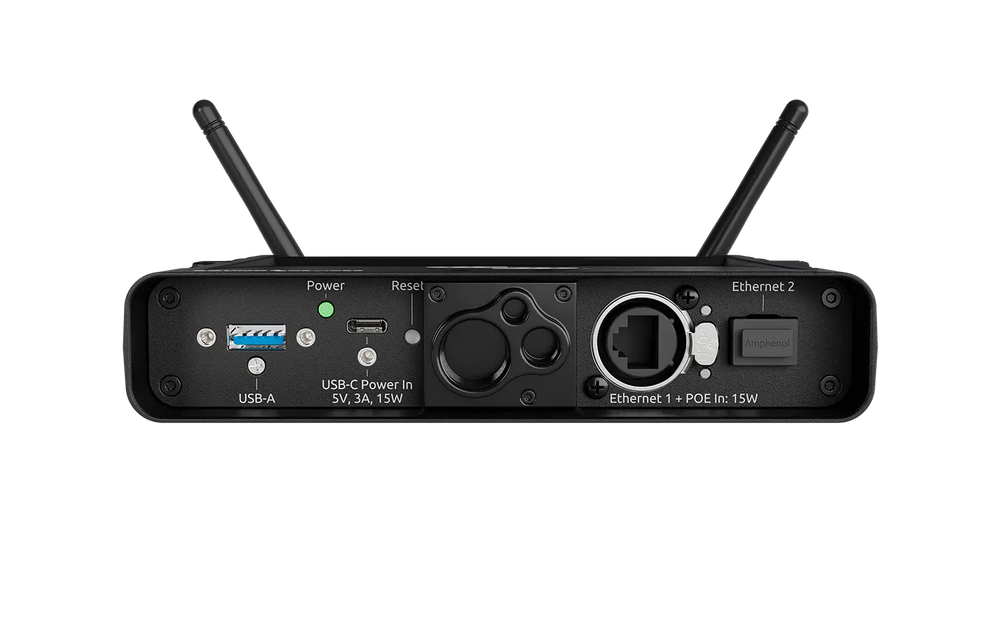

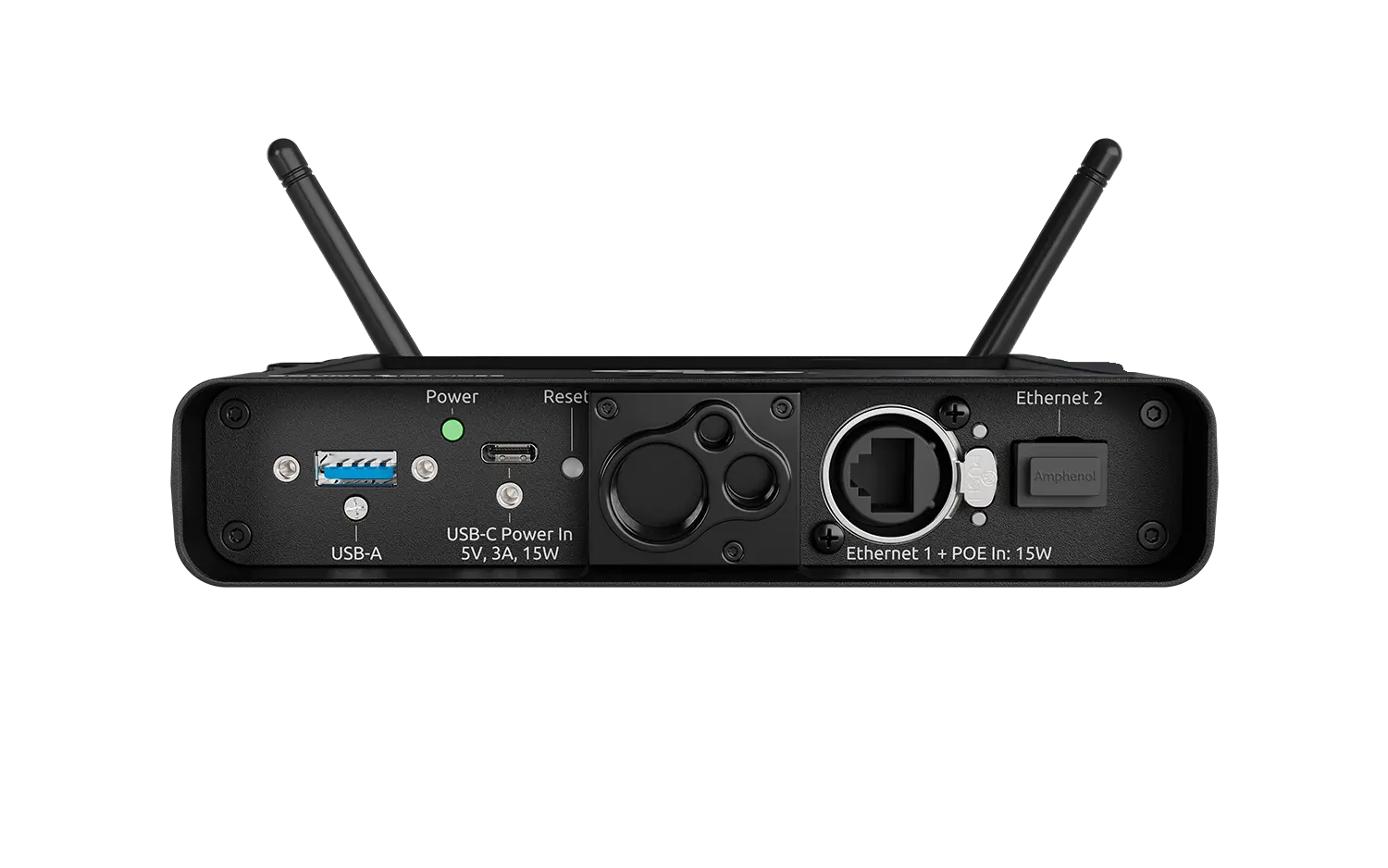

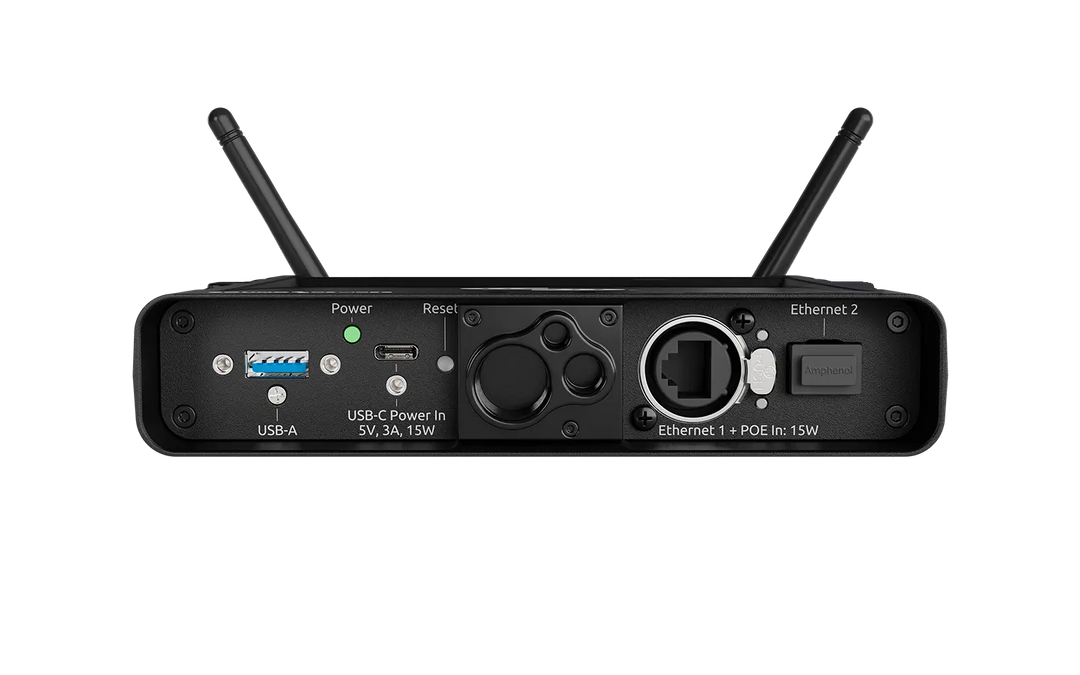

• Connectivity: Ethernet Cat-6 or optical Ethernet via SFP
• Power: PoE or USB-C input (up to 15 W)
• Firmware update: Ethernet or USB-A
• Chassis: Rugged metal, weather-resistant
• Mounting threads: 1/4", 3/8", 5/8"
• Dimensions: approximately 3.2 × 16 × 13.2 cm
• Weight: approximately 0.66 kg
• Colour: Black

2-year warranty when registered at sounddevices.com.
